cppgraph::test_suites_runner Struct Reference

A test suites runner runs a collection of test suites. More...

#include <test_suites_runner.h>

Inherits state_machine.

Public Member Functions
cppgraph::node_handle_t< cppgraph ::message_handler_filter_t< cppgraph ::state_machine_completed_message > >	get_message_handler_filter_t_state_machine_completed_message_child () const
	[auto-generated] cppgraph :: message_handler_filter_t < cppgraph :: state_machine_completed_message > child node access. More...
void	on_state_machine_completed_message (cppgraph::node_handle_t< cppgraph ::state_machine_completed_message > const &h_message)
	[auto-generated] Handler for messages of type cppgraph :: state_machine_completed_message . More...
cppgraph::node_handle_t< cppgraph ::message_handler_filter_t< cppgraph ::state_machine_completed_message > >	set_message_handler_filter_t_state_machine_completed_message_child (cppgraph::node_handle_t< cppgraph ::message_handler_filter_t< cppgraph ::state_machine_completed_message > > const &h_message_handler_filter_t)
	[auto-generated] Replaces the child node whose class is or derived from, cppgraph :: message_handler_filter_t < cppgraph :: state_machine_completed_message >. More...

Static Public Attributes
static const cppgraph::link_name_t	running_test_suite_state_link_name { "running_test_suite_state" }
	[auto-generated] Returns the link_name_t of property running_test_suite_state . More...

Protected Member Functions
	test_suites_runner (node_handle_t< test_suites > const &h_test_suites)
	Construction. More...

Detailed Description

A test suites runner runs a collection of test suites.

Object Diagram

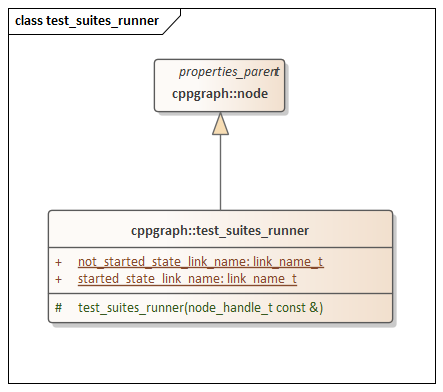

Class Diagram

Constructor & Destructor Documentation

test_suites_runner()

cppgraph::test_suites_runner::test_suites_runner ( node_handle_t< test_suites > const &  h_test_suites )

protected

Construction.

Runs the provided test suites, in order. A test_suites_completed_message is broadcast when they have completed.

Parameters

h_test_suites

Node to set to this node's test suites started state child node.

Member Function Documentation

get_message_handler_filter_t_state_machine_completed_message_child()

cppgraph::node_handle_t< cppgraph :: message_handler_filter_t < cppgraph :: state_machine_completed_message > > cppgraph::test_suites_runner::get_message_handler_filter_t_state_machine_completed_message_child ( ) const

inline

[auto-generated] cppgraph :: message_handler_filter_t < cppgraph :: state_machine_completed_message > child node access.

Returns

The cppgraph :: message_handler_filter_t < cppgraph :: state_machine_completed_message > child node. It is guaranteed not to be nullptr.

Exceptions

exception	There is no cppgraph :: message_handler_filter_t < cppgraph :: state_machine_completed_message > child node.
exception	There is more than one cppgraph :: message_handler_filter_t < cppgraph :: state_machine_completed_message > child node.

on_state_machine_completed_message()

void cppgraph::test_suites_runner::on_state_machine_completed_message

(

cppgraph::node_handle_t< cppgraph ::state_machine_completed_message > const &

h_message

)

[auto-generated] Handler for messages of type cppgraph :: state_machine_completed_message .

Parameters

h_message

Message to handle.

set_message_handler_filter_t_state_machine_completed_message_child()

cppgraph::node_handle_t< cppgraph :: message_handler_filter_t < cppgraph :: state_machine_completed_message > > cppgraph::test_suites_runner::set_message_handler_filter_t_state_machine_completed_message_child ( cppgraph::node_handle_t< cppgraph ::message_handler_filter_t< cppgraph ::state_machine_completed_message > > const &  h_message_handler_filter_t )

inline

[auto-generated] Replaces the child node whose class is or derived from, cppgraph :: message_handler_filter_t < cppgraph :: state_machine_completed_message >.

Parameters

h_message_handler_filter_t

Handle to a node to replace the existing node.

Returns

A handle to the node that was replaced. It is guaranteed not to be nullptr.

Exceptions

exception	There is no existing node whose type is of or derived from cppgraph :: message_handler_filter_t < cppgraph :: state_machine_completed_message >.
exception	There is more than 1 existing node whose type is of or derived from cppgraph :: message_handler_filter_t < cppgraph :: state_machine_completed_message >.
exception	h_message_handler_filter_t is nullptr.

Member Data Documentation

running_test_suite_state_link_name

const cppgraph::link_name_t cppgraph::test_suites_runner::running_test_suite_state_link_name { "running_test_suite_state" }

inlinestatic

[auto-generated] Returns the link_name_t of property running_test_suite_state .

Returns

The link_name_t of property running_test_suite_state .

---

The documentation for this struct was generated from the following files:

• c:/cppgraph/lib/cppgraph/test/test_suites_runner.h
• c:/cppgraph/lib/cppgraph/test/test_suites_runner.cpp
