A properties parent is a base for classes that need to provide access to child property links. More...
#include <properties_parent.h>
Inheritance diagram for cppgraph::properties_parent:
Public Member Functions | |
| property_link_handle | add_property_link (link_name_t const &link_name, property_handle const &h_property) const |
| Attaches a specified property to this object using a specified name for the new property link. More... | |
| template<typename T > | |
| property_link_handle | find_or_add_property_link_t (link_name_t const &link_name) const |
Returns the property link of this node whose property is of a specified type, and whose link name matches a specfied name. If it doesn't currently exist, the link, with name link_name and a default-constructed property of type T, is created and added. More... | |
| property_handle_list | find_properties (node_handle_t< property_filter > const &h_filter=nullptr) const |
| Returns a container of all child properties of this object that pass an optionally-specified property filter,. More... | |
| property_handle_list | find_properties (link_name_t const &link_name, error_action_enum error_action_type, selection_multiplicity_enum selection_multiplicity_type, node_handle_t< property_filter > const &h_filter=nullptr) const |
| Returns a container of all child properties of this object that pass an optionally-specified property filter, and whose property link has a specified name. More... | |
| template<typename T > | |
| property_handle_list | find_properties_t (error_action_enum error_action_type, selection_multiplicity_enum selection_multiplicity_type, node_handle_t< property_filter > const &h_filter=nullptr) const |
| Returns a container of all child properties of this object that pass an optionally-specified property filter, and that are of a specified type. More... | |
| template<typename T > | |
| property_handle_list | find_properties_t (link_name_t const &link_name, error_action_enum error_action_type, selection_multiplicity_enum selection_multiplicity_type, node_handle_t< property_filter > const &h_filter=nullptr) const |
| Returns a container of all child properties of this object, that pass an optionally-specified property filter, that are of a specified type, and whose property link has a specified name. More... | |
| property_handle | find_property (link_name_t const &link_name, error_action_enum error_action_type, node_handle_t< property_filter > const &h_filter=nullptr) const |
| Returns the property of this object that passes an optionally specified filter, and whose property link has a specified name. More... | |
| property_link_handle | find_property_link (link_name_t const &link_name, error_action_enum error_action_type, node_handle_t< property_link_filter > const &h_filter=nullptr) const |
| Returns the property link of this node that passes an optionally specified property link filter, and whose link name matches a specfied name. More... | |
| template<typename T > | |
| property_link_handle | find_property_link_t (error_action_enum error_action_type, node_handle_t< property_link_filter > const &h_filter=nullptr) const |
| Returns the property link of this node that passes an optionally specified property link filter and whose property is of a specified type. More... | |
| template<typename T > | |
| property_link_handle | find_property_link_t (link_name_t const &link_name, error_action_enum error_action_type, node_handle_t< property_link_filter > const &h_filter=nullptr) const |
| Returns the property link of this node that passes an optionally specified property link filter, whose property is of a specified type, and whose link name matches a specfied name. More... | |
| property_link_handle_list | find_property_links (node_handle_t< property_link_filter > const &h_filter=nullptr) const |
| Returns a container of all property links of this object, selected by an optionally-specified property link filter. More... | |
| property_link_handle_list | find_property_links (link_name_t const &link_name, error_action_enum error_action_type, selection_multiplicity_enum selection_multiplicity_type, node_handle_t< property_link_filter > const &h_filter=nullptr) const |
| Returns a container of all property links of this node, that pass an optionally-specified property link filter, and that have a specified name. More... | |
| template<typename T > | |
| property_link_handle_list | find_property_links_t (error_action_enum error_action_type, selection_multiplicity_enum selection_multiplicity_type, node_handle_t< property_link_filter > const &h_filter=nullptr) const |
| Returns the property links of this node that pass an optionally specified property link filter and whose property is of a specified type. More... | |
| template<typename T > | |
| property_link_handle_list | find_property_links_t (link_name_t const &link_name, error_action_enum error_action_type, selection_multiplicity_enum selection_multiplicity_type, node_handle_t< property_link_filter > const &h_filter=nullptr) const |
| Returns the property links of this node that pass an optionally specified property link filter, whose property is of a specified type, and whose link name matches a specfied name. More... | |
| template<typename T > | |
| property_handle_t< T > | find_property_t (error_action_enum error_action_type, node_handle_t< property_filter > const &h_filter=nullptr) const |
| Returns the property of this object having a specified type, that passes an optionally specified filter. More... | |
| template<typename T > | |
| property_handle_t< T > | find_property_t (link_name_t const &link_name, error_action_enum error_action_type, node_handle_t< property_filter > const &h_filter=nullptr) const |
| Returns the property of this object having a specified type, that passes an optionally specified filter, and whose property link has a specified name. More... | |
| property_handle | replace_property (property_handle const &h_current_property, property_handle const &h_new_property, error_action_enum error_action_type) |
| Replaces an existing property with a specified property, re-using the property link to the existing property. More... | |
| property_link_handle_list | set_properties (link_name_t const &link_name, property_handle_list const &properties) const |
| Attaches specified properties to this object, using a specified link name. More... | |
| void | set_property_link (property_link_handle const &h_link) const |
| Attaches a specified property link to this object. More... | |
| void | set_property_links (property_link_handle_list const &links) const |
| Attaches specified property links to this object. More... | |
| template<typename T > | |
| property_link_handle | set_user_property_t (link_name_t const &link_name, T const &value) const |
| Attaches a specified user property to this object using a specified name for the new property_link" "property link". More... | |
Detailed Description
A properties parent is a base for classes that need to provide access to child property links.
As both nodes and node links can have attached properties, the implementation for managing them resides in this class, from which both node and node_link derive.
Object Diagram

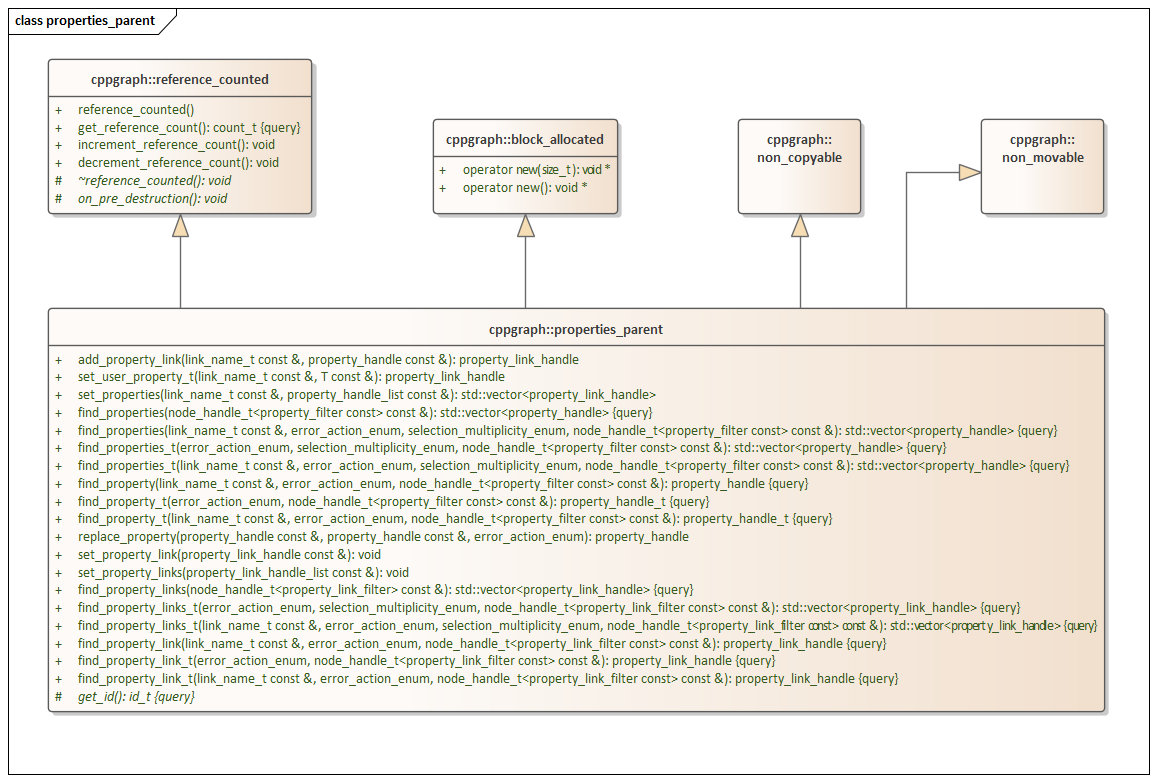

Class Diagram
The documentation for this struct was generated from the following files:
- c:/cppgraph/lib/cppgraph/graph/properties/properties_parent.h
- c:/cppgraph/lib/cppgraph/graph/function_templates.h
- c:/cppgraph/lib/cppgraph/graph/properties/properties_parent.cpp
